VGC14 系列gG/gL/aM型





Description:
VGC series fuses are cylindrical type fuses designed according to IEC standard. They cover a wide range of sizes are provide protections for industrial applications.


Features:
. Designed according to IEC60269-2, NFC63210, NFC63211,
. NFC63200, NBNC63269-2, EN-2-1, CE132-4
. Complying with RoHS and CE
. Operating class: gL /gG for cable and conductor protection
. aM for motor protection
. aR for semiconductor protection

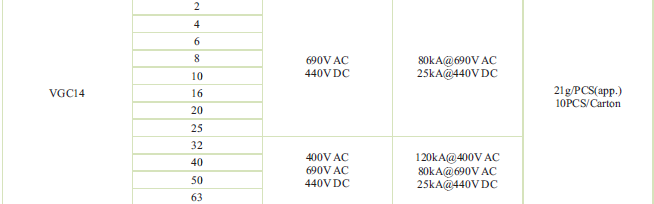

Ratings:
Voltage Rating: 500V/690V/800V/1000V AC
                          440V DC/ 250V DC
Interupt Rating:400 VAC, 20kA
                         400VAC, 120kA
                         500VAC, 120kA
                         690V AC, 80kA
                         440V DC, 25kA
                         440V DC, 50kA
                         250V DC, 25kA
                         690V AC, 50kA



可搭配以下底座、隔离开关配套使用:http://www.maxvaton.com/ProductInfoCategory?categoryId=909881&PageInfoId=0

产品中心

首页    IEC标准熔断器    通用管状熔断器    VGC14 系列gG/gL/aM型
电压:400VAC 690VAC 440VDC
电流:2-63A
尺寸:14x51mm
熔断特性:gG/aM/aR
认证: CE/TUV/CCC
环保:RoHS/REACH /PF
兼容规格:C08G/C10G /C14G/C22G 150**/160**/170**/180**
带撞针产品型号后缀请加-I

如需详细规格书请联系我们,E-mail: sales@maxvaton.com   Tel:0755-81705090.
