VGC22 系列gG/gL/aM型



Description:
VGC series fuses are cylindrical type fuses designed according to IEC standard. They cover a wide range of sizes are provide protections for industrial applications.


Features:
. Designed according to IEC60269-2, NFC63210, NFC63211,
. NFC63200, NBNC63269-2, EN-2-1, CE132-4
. Complying with RoHS and CE
. Operating class: gL /gG for cable and conductor protection
. aM for motor protection
. aR for semiconductor protection

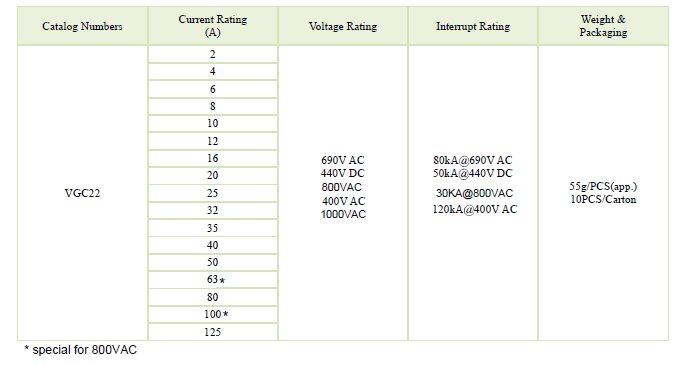

Ratings:
Voltage Rating: 500V/690V/800V/1000V AC
                          440V DC/ 250V DC
Interupt Rating:400 VAC, 20kA
                         400VAC, 120kA
                         500VAC, 120kA
                         690V AC, 80kA
                         440V DC, 25kA
                         440V DC, 50kA
                         250V DC, 25kA
                         690V AC, 50kA

可搭配以下底座、隔离开关:VRB22-125/VRB22-125S/VRB22-125SM/VRB22-125C

产品中心

首页    通用低压熔断器及底座    管状熔断器    VGC22 系列gG/gL/aM型
电压:500V/690V/800V/1000VAC
电流 :2-125A
尺寸:22.2*58
熔断特性: gG/aM/aR
安规: CE/TUV
环保 :ROHS/REACH/PF
兼容规格: C08G/C10G /C14G/C22G 150*/160**/170**/180**

如需详细规格书请联系我们,E-mail: sales@maxvaton.com   Tel:0755-81705090.
