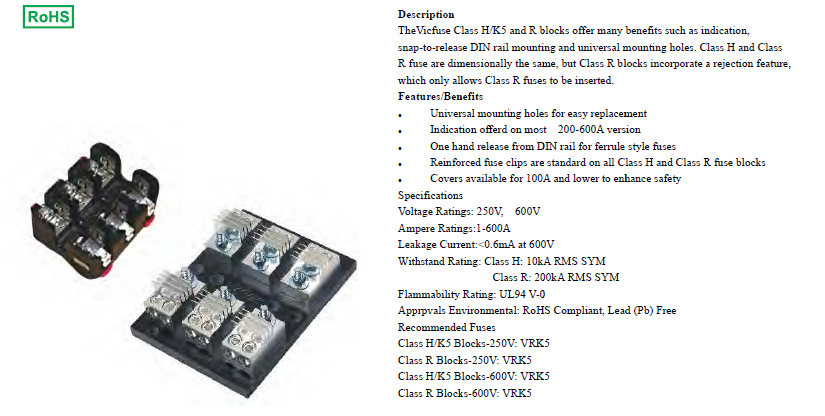

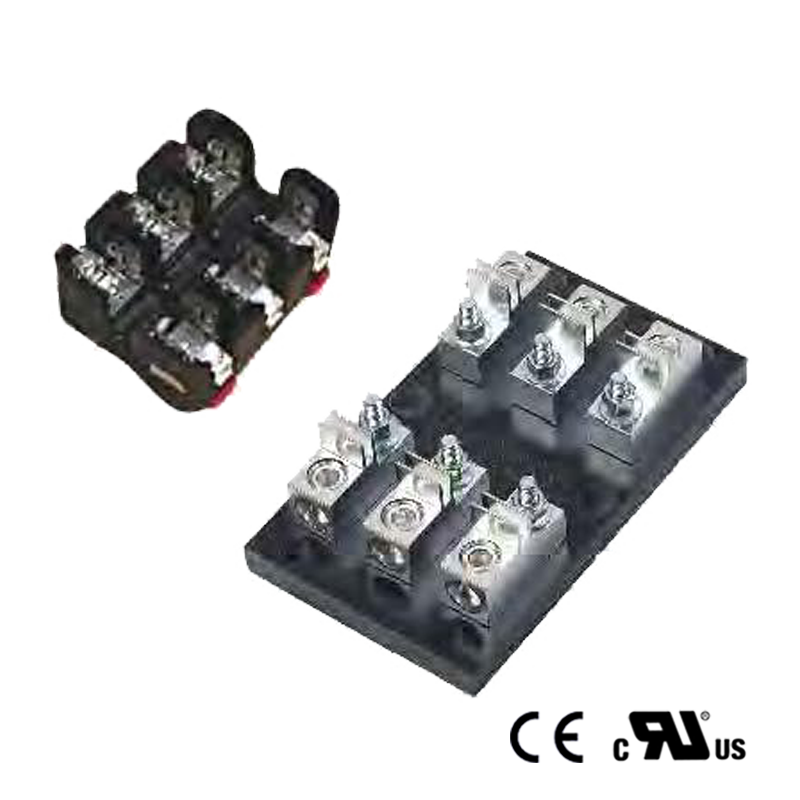

Class R/H/K5 Fuse Blocks

Description
TheVicfuse Class H/K5 and R blocks offer many benefits such as indication, snap-to-release DIN rail mounting and universal mounting holes. Class H and Class R fuse are dimensionally the same, but ClassR blocks incorporate a rejection feature,which only allows Class R fuses to be inserted.

Features/Benefits
Universal mounting holes for easy replacement
Indication offerd on most200-600A version
One hand release from DIN rail for ferrule style fuses
Reinforced fuse clips are standard on all Class H and Class Rfuse blocks
Covers available for 100A and lower to enhance safety

Specifications
Voltage Ratings: 250V,600v
Ampere Ratings:1-600A
Leakage Current:<0.6mA at 600v
Withstand Rating: Class H: 10kARMS SYM
                              Class R: 200kARMS SYM
Flammability Rating: UL94V-0
Apprpvals Environmental:RoHS Compliant,Lead (Pb)Free

Recommended Fuses
Class H/K5 Blocks-250V:VRK5
Class R Blocks-250V:VRK5
ClassH/K5 Blocks-600V: VRK5
Class RBlocks-600V:VRK5
