VR10T 慢速熔断器

Description:
VR10F/VR10T semiconductor protection fuses feature the only 600V AC/DC rating in the industry to protect semiconductors and others. VR10F/VR10T also has the lowest I't of all similar fuses and excellent cycling ability. Applications include inverters and small equipment requiring extremelyfast response to faults,without the need to carry sustained heavy overloads.


Features:
. Designed according to UL248
. Complying with CE and RoHS
. UL/CUL certified (File No. E356490)
. Lowest I2t
. Excellent cycling ability


Ratings:
Voltage Rating: 600V AC / DC 300V DC 125VAC/DC
Current Rating: 0.1A-80A
Interrupt Rating: 10kA@600V AC / 300V DC
                            30kA @600VDC
                            100kA @600V AC

可搭配以下底座、隔离开关配套使用:http://www.maxvaton.com/ProductInfoCategory?categoryId=909881&PageInfoId=0

产品中心

首页    通用低压熔断器及底座    管状熔断器    VR10T 慢速熔断器
电压:600VAC/300VDC/125VAC/DC
电流:0.1A-80A
安规认证:CE/UL/CUL

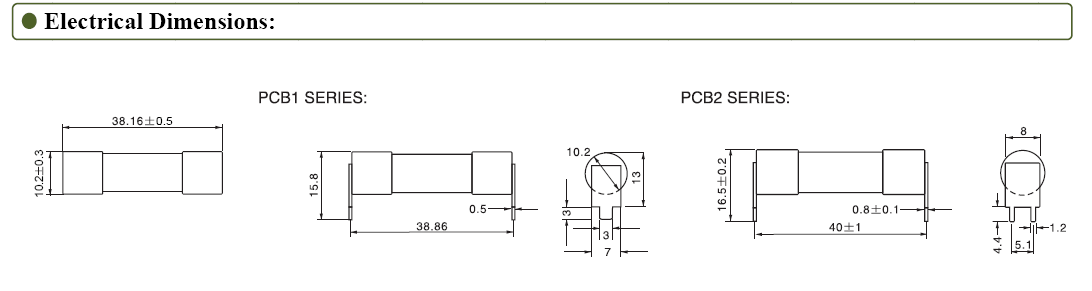

尺寸:10x38mm
熔断特性:aR/gR
环保:RoHS/REACH /PF
兼容规格:KTK A60Q
备注:可提供带撞针指示器、PCB焊接式产品。

如需详细规格书请联系我们,E-mail: sales@maxvaton.com   Tel:0755-81705090.
