VGC14-32S gG型

Description:
VGC series fuses are cylindrical type fuses designedaccording to IEC standard. They cover a wide rangeof sizes and provide protections for industrial applications.The operating temperature are -40c to+85 CThe fuse could withstand the 10kA , 8x20 us surge pulses
Features:
Designed according tolEC60269 2,NFC63210,NFC63211.NFC63200.NBNC63269-2.EN-2-1,CEI32-4Ul/CUL certifedFile No. E356490)complying with CE and RoHSOperating clas : gG

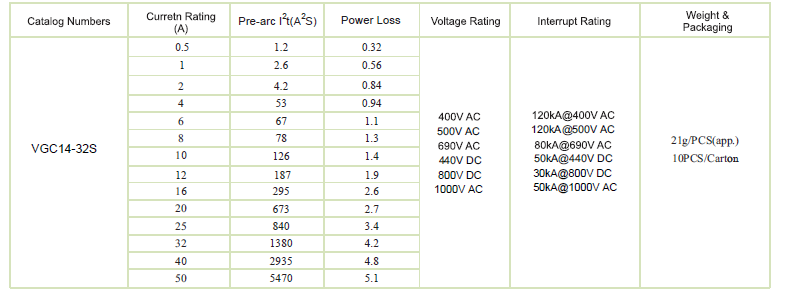

RatingsVoltage Rating: 400V AC/500V AC/690V AC1000V AC/ 440V DC/800VDC
Current Rating:    0.5A-50A
Interrupt Rating: 400V AC, 120kA
                           500V AC,120kA
                           690V AC,80kA
                           440V DC,50kA
                           800V DC,30kA
                           1000V AC,50kA

可搭配以下底座、隔离开关配套使用:http://www.maxvaton.com/productinfo/89865.html



产品中心

首页    IEC标准熔断器    通用管状熔断器    VGC14-32S gG型
电压:1000VAC/800VDC/440DC
电流:0.1A-50A
尺寸:14x51mm
安规认证:CE,CUL,CQC
熔断特性:gG
备注:可提供带撞针指示器、PCB焊接式产品。

如需详细规格书请联系我们,E-mail: sales@maxvaton.com   Tel:0755-81705090.
