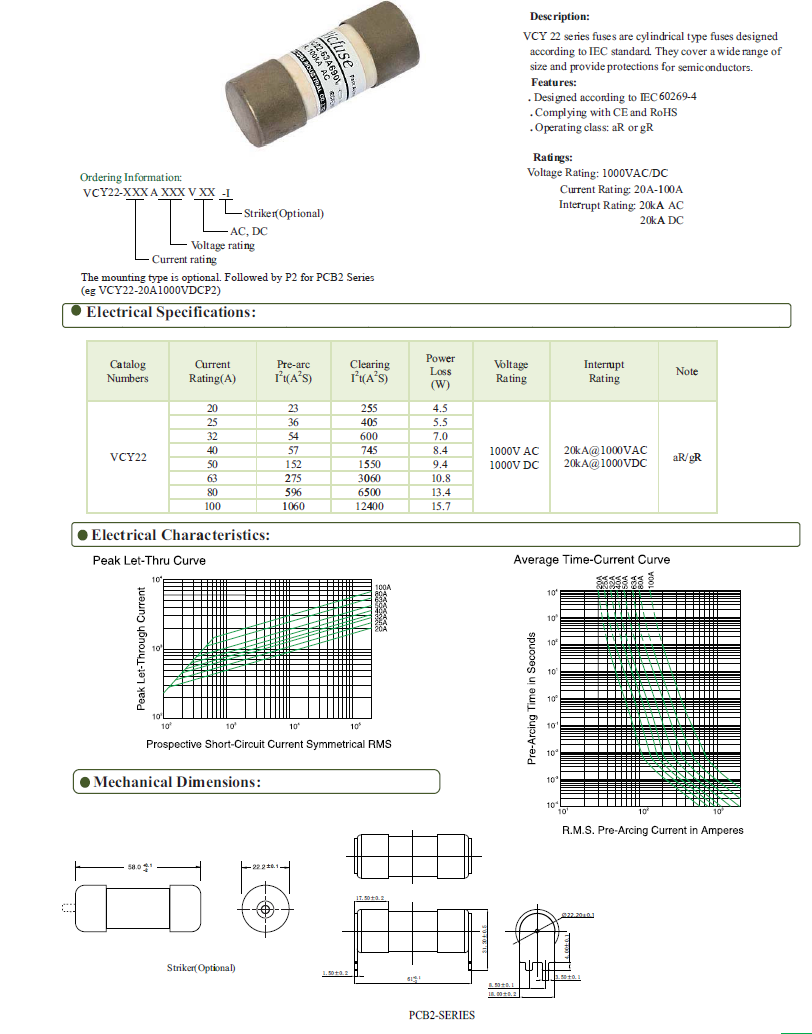

VCY22

escription:
VCY22seriesfusesarecylindricaltypefusesdesigned
according toIEC standard.They cover awide range of
size andprovideprotectionsforsemiconductor.
Features:
.Desigmed according to IEC60269.4
.Complying with CE and RoHS
.Operating class: aR or gR
Ratings
Voltage Rating: 1000VAC/DC
Curent Rating: 20A-100A
Intemupt Rating: 20kA AC
20kADC

电压：1000VAC/1000VDC
电流：20A-100A
尺寸：22x58mm
认证：TUV,CE
保护特性：aR/gR
分断力：1000VAC 20kA
1000VDC 20kA
